ADDERLink® AV100 Full HD VGA digital signage extender

Product ID: ALAV100T

Brand: ADDER Technolog...

Download PDF

The ADDERLink AV100T is an audiovisual extender delivering high video resolutions and superb quality audio up to 300m using standard CATx cable (x=5,5e,6,7).

Designed for use in Digital Signage applications, the innovative design allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision. This product avoids the prohibitive costs of fibre optic cabling, displays with built in CPUs or locating a CPU next to each screen.



Product Features



Extends video and audio across a single CATx cable



Extra fine video quality at resolutions up to 1920x1080 at 200m and 1280 x 1024 at 300m



High fidelity clickless digital audio (16bit, 44.1 kHz, stereo)



Fine, independent sharpness and brightness control



DDC support



Feed through / cascade port at transmitter



Dual video and audio outputs at receiver



Use stand alone or rack mount 16 modules across 3U



Advanced spike suppression circuits for reliability in 'noisy' installations



All metal construction



Power / video indication confirms correct operation



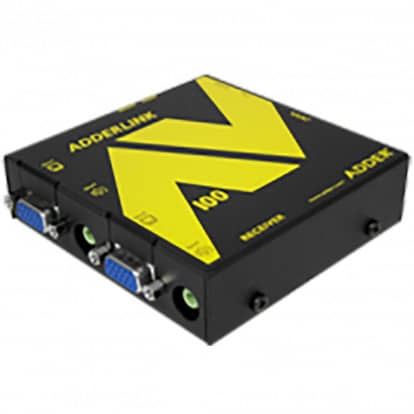

ADDERLink AV100T transmitter



  • Sold individually or as a pair
  • Extends high-resolution video and high fidelity audio up to 300m
  • Local port on transmitter to connect local screen and speakers or for cascading other ADDERLink AV100T transmitter units
  • ADDERLink AV100R duplicates input from transmitter allowing for 2 video and 2 audio outputs
  • Can be used as a receiver up to 300m from ADDERLink AV100T or ADDERLink AV104T transmitters

Video Resolutions

HD 1920x1080 at distances up to 100 metres/325 feet, 1280 x 1024 at distances up to 300 metres/1000 feet. Extension distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).

Extension technology

Differential analogue signalling for video signals.

Cable Equalisation

Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.

Indicators

The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.

Audio

Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.

Rack mount options

Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDERLink AV Series rack mount chassis. The chassis enable 16 units to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.

Connectors

1 x blue 15-pin high-density D-type female connector for video input and 1 x light green 3.5mm audio jack for audio input.
1 x blue 15-pin high-density D-type female connector for video output and 1 x light green 3.5mm audio jack for audio output or cascade to additional
ADDERLink AV100T.
1 x RJ45 connector for CATx cable connection.
2.5mm DC jack for power adapter.

Physical

Metal case (steel and stainless steel), 98mm x 95mm x 25mm.

Power

All ADDERLink AV units are powered by an external 5V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 4amp power supply and the Adder "squid" cable.

Spike suppression

ADDERLink AV units are fitted with spike suppression circuits.

Display Data Channel

DDC signalling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation.

Package contents

All ADDERLink AV Series come with the necessary IEC style power supply and power cord, safety and installation leaflet, CD manual, stick on rubber feet. (Note: the rack panels are not inlcuded and need to be purchased seperatly as required.

Optional accessories

ALAV - Series rack mount chassis (part code: ALAV-RMK-CHASSIS), rack mount plate for local/remote unit (part codes: ALAV-RMK-FACIA). Adder 4amp power supply and "squid" cable to power 4 ALAV units (part code ALAV-PDM-KIT).

Approvals

FCC class A, CE marked.

Power

Operating Voltage: 100-240VAC
Power Frequency: 50-60Hz
Usage: 5VDC at 500mA.

Temperature Tolerance

0 - 40 deg C (32 to 104 deg F)

Humidity Tolerance

5 to 60% non-condensing
