ADDERView® Matrix C110 (HDMI)

ADDERView® Matrix C110 (HDMI)

An ADDERView Matrix C100 Series ZeroU™ IP KVM dongle for extension and matrix of video, audio and USB over a single cable.

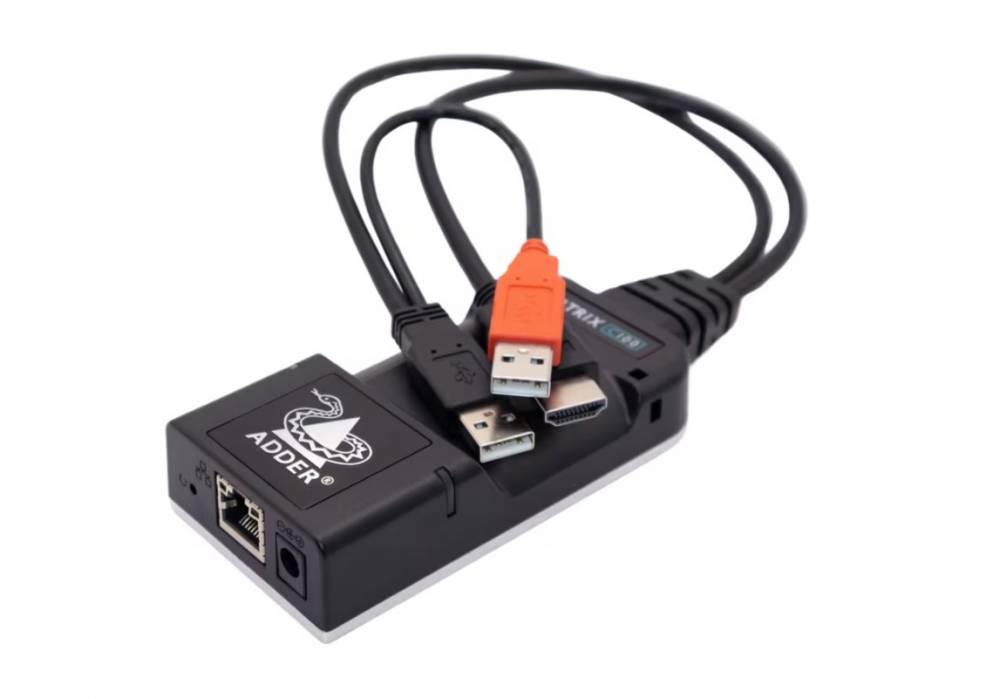

The ADDERView Matrix C110 (HDMI) is a ZeroU™ Computer Access Module (CAM) with a HDMI connecter to enable computer systems to be attached to an ADDERView KVM system.

ZeroU™ Form Factor

The ADDERView Matrix C100 Series takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.

USB Powered

Using less than 3 Watts, the device can be powered from USB. This means there is no need for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

USB 2.0 with Class Control

Supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices.

Perfect Digital Video in Real-Time

Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts.

Support for Dithered Video

Allows dithered analog or noisy video to pass through the system. Some Mac computers use this technique.

EDID Management

Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one.

Digital Audio

The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

Plug and Play

ADDERView Matrix devices are delivered in a zero-config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
