Product ID: SY-SMS-44-18G

Brand: SY Electronics

SMS44-18G – Seamless Matrix Switch with Video Wall Mode

Seamless Switching Matrix with the ability to accept 4x HDMI 18G inputs, with 4x HDMI outputs, and perform wide range Scaling up to 4K 60Hz 4:4:4. Can be used as a 4x4 Seamless Matrix, or a Video Wall Processor that can be configured up to a 2 x 2 video wall layout. Programmable through a number of methods including RS232, front panel and the PC App which offers the most complete control over all settings, including customisable Input and Output name labels. Audio embed (L/R), and de-embed options are available as optical Toslink or L+R analogue output from any of the HDMI inputs. Available with easy to install 19” 1U rack-mount unit, suitable for a wide variety of applications within the residential, educational, commercial and hospitality sectors.



Seamless 4x4 HDMI Matrix – Seamlessly switch between 4x HDMI 2.0 inputs, to 4x HDMI 2.0 outputs, capable of 4K60 4:4:4 60Hz 18G with programmable, and pre-saved modes. Switching is performed seamlessly with no black between the video transition.  The current matrix routing configuration can be stored into 8 Pre-Sets.  These may be recalled by using the front panel buttons, RS232 or PC App.

Video Wall Processor – Video Wall processing settings can be used to create multiple Video Walls using some or all of the 4 HDMI outputs.  The functions include ‘Stitch/Un-Stitch’ to place a second video source onto a display within the video Wall, and ‘Bezel Compensation’ to match the edge of the display screens being used.  Scenes can be saved and recalled via pre-set memory locations.

Audio Control – Audio can be embedded via Analogue L/R Audio Inputs. Audio can be de-embedded via Toslink, Analogue L/R RCA jacks, or Balanced Analogue L/R audio. Any of the available inputs' audio can be independently selected at any time. Full audio signal routing can be performed by using the PC App.

Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display's capabilities.

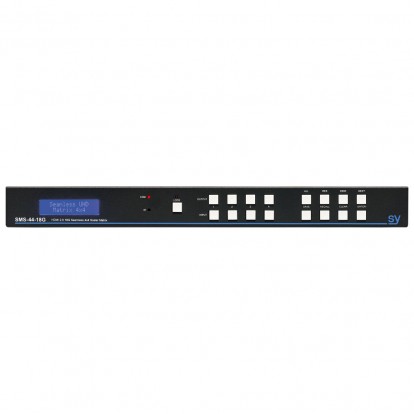

Control Options– Control can be carried out via Front panel buttons, PC App, RS232, TCP/IP or LAN controlled Web GUI.  RS232 commands can be sent directly via the LAN interface. The Web GUI offers basic control of parameters.  Front Panel offers 'Panel lock' to prevent accidental switching of front panel buttons.

Video Tuning  Fine Tuning of the picture is afforded via the ‘PQ’ function which is accessible through the Web GUI.

EDID Management  This unit has several EDID options and also the ability to utilise any of the onboard pre-set EDIDs settings, which can be fed to any input selectively. Read EDID from any output and import EDIDs .bin files

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into Cascade Mode.

Test Pattern Generator – Onboard Test Pattern generation per output is included allowing for easy test and set up of all outputs.


Features

  • HDMI 2.0 18G Matrix & Video Wall Processor
  • Seamless Switching
  • Wide range Scaling up to 4K60 4:4:4
  • Video-Wall Processing with Bezel Compensation
  • Supports 180 degree image rotation per display in Video Wall mode
  • Test Pattern Generator
  • Audio Embed
  • De-embed Audio
  • HDCP Management (up to 2.2)
  • Extensive EDID control
  • Infra-Red Matrix
  • Controllable from Front Panel Buttons, IR, RS232, Web GUI or TCP/IP
  • 19in 1U rack mount

PART NUMBER: SY-SMS-44-18G

VIDEO RESOLUTIONS/FORMATS

Input resolution examples:
  All HDMI resolutions to 4096x2160p 60Hz 4:4:4
  4096x2160p 24/25/30/50/60Hz      3840x2160p 24/25/30/50/60Hz      2560x1440 50/60Hz

  1920x1200 60/65/75Hz                 1920x1080p 24/25/30/50/60Hz      1920x1080i 50/60Hz
  1680x1050 60/75Hz                      1600x1200 60/65/70/75Hz            1600x1024 60/75Hz
  1600x900 60/75Hz                        1440x900 60/75Hz                       1400x1050 60/75Hz
  1366x768 60Hz                             1360x768 60Hz                            1280x1024 60/72/75/85Hz
  1280 x 960 60/75/85Hz                 1280x800 60/75Hz                       1280x768p 50/60/75Hz
  1280x720p 25/30/50/60/75Hz       1024x768p 60/70/75/85Hz            800x600p 60/72/75/85Hz
  720x576p 60Hz                            640x480p 60/65/85Hz

Output Scaler resolution examples:
  3840x2160p 25/30/50/60Hz         1920x1200p 60Hz                        1920x1080p 50/60Hz
  1600x1200 60Hz                         1400x1050 60Hz                          1366x768 60Hz
  1360x768 60Hz                           1280x1024 60Hz                          1280x768 60Hz
  1280x720p 50/60Hz                    1024 x 768p 60Hz
  Auto mode



BANDWIDTH
  18Gbps

HDCP
  HDCP 1.4, HDCP 2.2
HDMI
  HDMI 2.0

INPUTS
Video in

  4x HDMI 2.0
Audio in
  4x 3pin Phoenix screw terminal connectors for un-balanced line audio
  Frequency response: 20Hz – 20KHz, 1.0Vrms max.
Audio Embedding
  Any input audio can be routed to any Video Input
IR in
  4x TRS 3.5mm Jack, 30 – 60KHz carrier

OUTPUTS
Video out
  4x HDMI 2.0
Audio out
  4x TRS 3.5mm Jack for Toslink and L+R unbalanced audio
  4x 5pin Phoenix screw terminal connectors for balanced line audio

  Frequency response: 20Hz – 20kHz, 1.0Vrms max.
Audio Format Supported:
  2.0, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS
Audio De-embedding
  Any Audio Input can be routed to any Audio Output (or follow the HDMI Audio)
IR out
  4x 3.5mm Jack, 30 – 60kHz carrier

CONTROL
  RS232 via 3 pin Phoenix screw terminal connector
  LAN via RJ45

  IR
Control Matrix
  4x IR Inputs via 3.5mm TRS Jacks
  4x IR Outputs via 3.5mm TRS Jacks
  IR Follows Video Input routing

POWER
Power Supply:

  IEC- 110~240V AC
Power Consumption:
  60W max.

ENVIRONMENTAL
Operating Temperature:

  0 to +40°C (+32 to +104°F)
Operating Humidity:
  10 to 90 % RH (non-condensing)

PHYSICAL
Weight:

  5kg
Dimensions (WxHxD):

  430
 x 44 x 220 (19in 1U rack mount)

WHAT’S IN THE BOX
  1x SMS44-18G
  2x Rack mounting brackets (already fitted)
  1x AC Power cord
(IEC 60320 C13)
  1x SMS44-18G User manual
