SY Electronics Apollo 41 – 4K 18G Multi-Viewer with Up/Down Scaling and Seamless Switching
SY Electronics Apollo 41 – 4K 18G Multi-Viewer with Up/Down Scaling and Seamless Switching
SY Electronics Apollo 41 – 4K 18G Multi-Viewer with Up/Down Scaling and Seamless Switching

SY Electronics Apollo 41 – 4K 18G Multi-Viewer with Up/Down Scaling and Seamless Switching

Product ID: SY-Apollo 41

Brand: SY Electronics

Download PDF

Apollo 41 – 4x1 Seamless Switcher & Multi-viewer

Seamless Multi-viewer with the ability to accept up to 4x HDMI 18G inputs, 1x HDMI output and perform wide range Scaling up to 4K 60Hz 4:4:4. Capable of displaying in Single, Dual, Triple, Quad Multi-View or various PIP modes via the HDMI output. An audio de-embed option is available as optical Toslink or L+R analogue output from any of the HDMI inputs. Apollo 41 is an ideal presentation solution for management of multiple video sources onto one display for offices, huddle spaces and educational and residential settings.

Seamless 4x1 Switcher – Seamlessly switch between 4x HDMI 2.0 inputs, to 1x HDMI 2.0 output, capable of 4K60 4:4:4 60Hz 18G.

Multiview mode – Any of the 4 available inputs can be selected to display in Single, Dual, Triple or Quad view, with various options of window size.

PiP – Any two inputs can be used to create a customised picture in picture, which includes window size and position.

Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display's capabilities.

Audio Control – Mute function and control of output volume. Audio can be de-embedded via Toslink or Analogue L/R RCA jacks. Any of the available inputs' audio can be independently selected at any time.

VKA – The Video Keep Alive function can maintain a video output when there is no signal. When there is no active input signal, the display can be configured to show a blue or black image, ensuring that the screens remain active until a new signal is detected.

IT Content Setting – The IT Content (ITC) setting tells the display to use its own video quality processing algorithms, instead of the Intel graphics driver when movies are played in full-screen mode to ensure the best video quality.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into Cascade Mode.

Auto or Manual Switching  In Single mode, the auto-switch feature will automatically select the newly connected source. When currently selected source is lost, the next available active input will be automatically selected. Manual switching can be carried out from the front panel, IR or RS232.



Features

  • 4x1 4K 18G Switcher & Multi-viewer
  • Seamless Switching
  • Wide range Scaler to 4K60 4:4:4
  • Single, Dual, Triple, Quad display modes
  • PiP (Picture in Picture)
  • Extensive EDID control
  • HDCP management
  • VKA (Video Keep Alive)
  • ITC (IT Content)
  • De-embed audio

PART NUMBER: SY-Apollo 41

HDMI VERSION
  Inputs: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported
  Output: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

HDCP COMPLIANCE
  Input HDCP: HDCP 1.4, 2.2
  Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode

RESOLUTIONS / FORMATS
Input resolutions:
  All HDMI and PC resolutions up to 4K 60Hz 4:4:4

Colour Spacing:
  Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Colour Depth:
  8, 10, 12 bits

SCALER
Up and Down-Scaling (Resolution and Refresh Rate)
  Various resolutions and refresh rates up to 4K@60Hz 4:4:4

AUDIO
Audio Formats Supported:

  2.0, 2.1, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS

De-embedded Audio out:
  Optical Toslink and line level analogue audio RCA L/R

CONTROL
 1x RS232 (3-way pluggable terminal block) (57600 bps, 8 bits, no parity, 1 stop bit)
 1x IR Ext (3.5 stereo jack)
 Front Panel buttons
 Front Panel IR

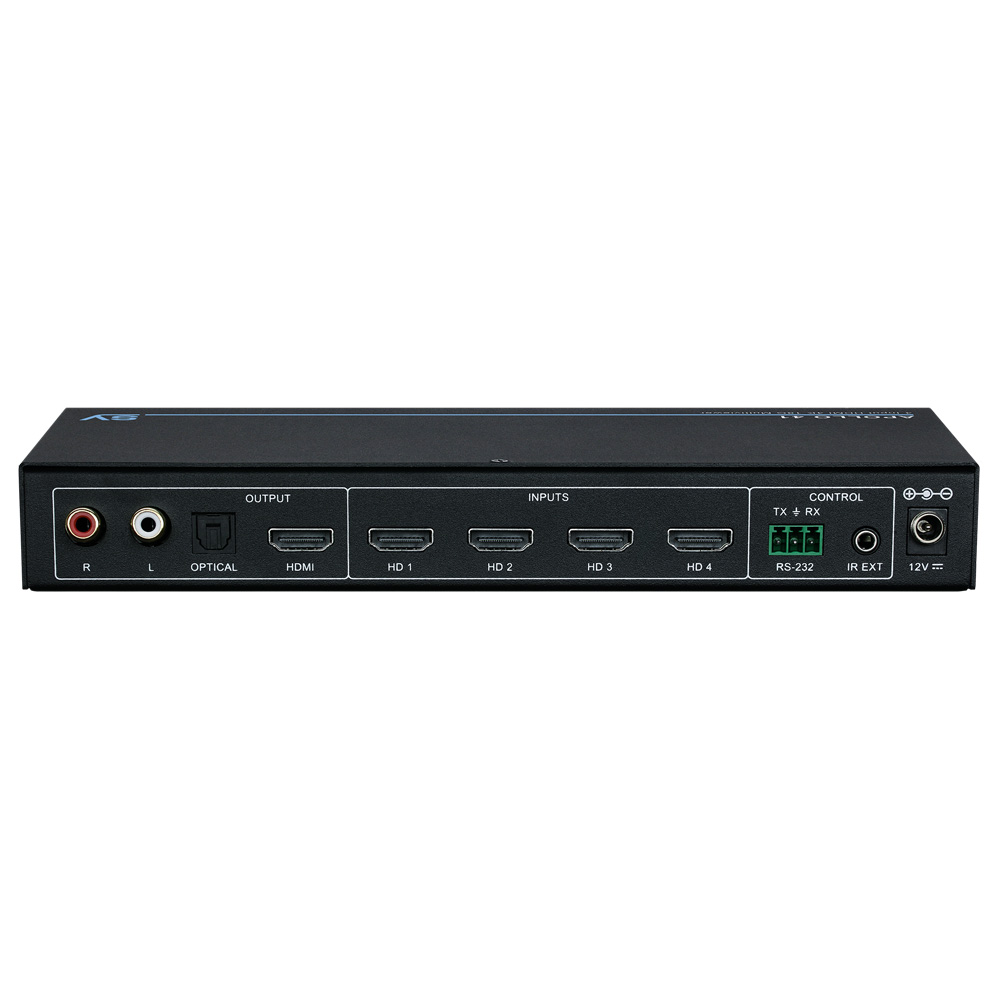

CONNECTORS
  4x HDMI Inputs
  1x HDMI Output
  1x Optical Toslink Digital audio out
  1x RCA L and R Analogue audio outs
  1x 3.5mm TRS IR Input
  1x Phoenix Screw Terminals for RS232
  1x IR Eye on front panel
  1x 12V DC Power input (2.1mm barrel jack)

POWER
Power Consumption:
  10W max
Power Supply:
  12V 2.5A DC – (2.1mm barrel jack)

ENVIRONMENTAL
Operating Temperature Range:
  0  ~ +40°C (32 ~ 104F)
Operating Humidity Range:
  10 ~ 90% RH (Non-condensing)

PHYSICAL
Dimensions (WDH)
  220 x 100 x 30mm
Weight (net)
  620g


WHAT’S IN THE BOX
 1x SY-Apollo 41
 1x User manual
 1x 12V 2.5A DC PSU (Locking)
 1x IR Eye
 1x IR remote control
 1x pluggable 3-way screw terminal connector
 2x Mounting Ears
 4x M3 screws
 4x Rubber feet
